is an automated device for industrial automation. It has a high torque range from 185Nm to 157,300Nm for ball valve or butterfly valve which require higher torque need. Features include large output torque and flexible motion balance.

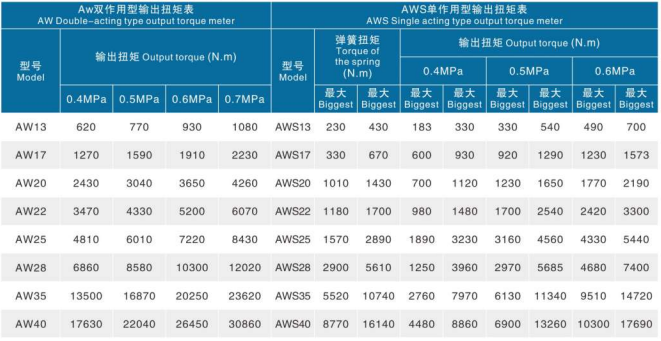

Technical Parameter
Model: AW series
Actuation Types: Spring return type or Double acting type
Torque Range: Spring return type: 185Nm to 37,000Nm; Double acting type: 515Nm to 157,300Nm
