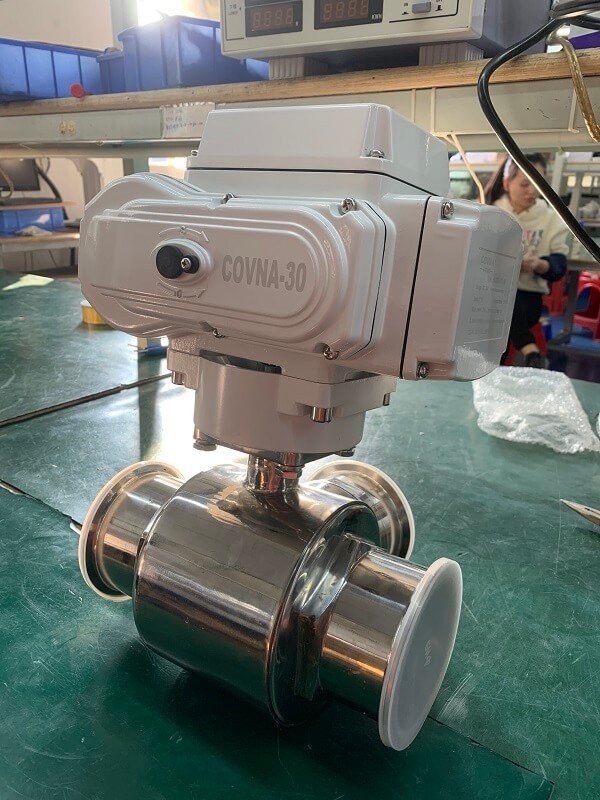

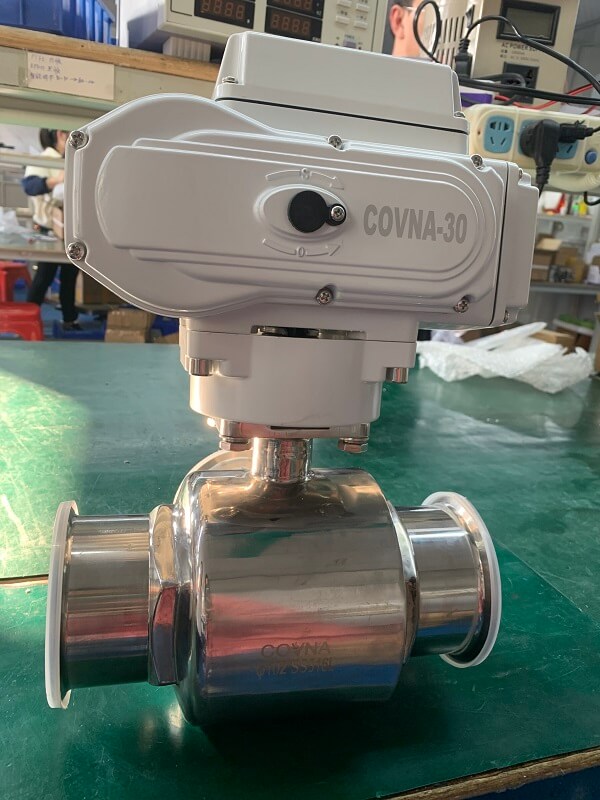

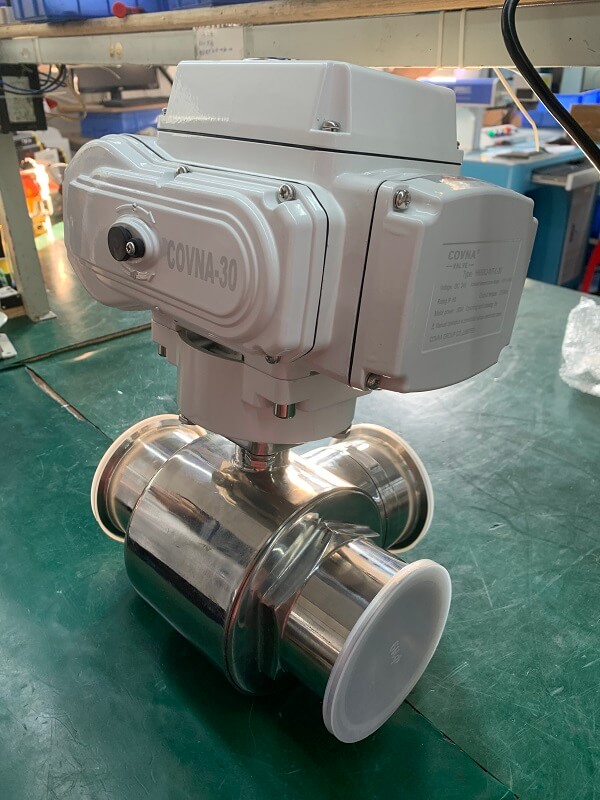

HK60-Q-WT Food Grade 3 Way Electric Actuator Ball Valve

Short Description:

COVNA Food Grade 3 Way Electric Actuator Ball Valve

Electric sanitary clamp 3 way ball valve is available in T-port and L-port configurations. These configurations allow for various flow control options, making them suitable for a wide range of applications in the food, pharmaceutical, and biotechnology industries. The clamp clamping device and electric actuator make installation and operation easy and efficient. Additionally, the valve’s hygienic design makes it easy to clean and maintain, ensuring that it meets the strict standards of the industry.

Model

Actuator Type: ON OFF Type, Modulating Type
Body Material: Stainless Steel 304/ 316L
Pressure: 10bar
Temperature Of Media: -10 to 180℃ (14℉ to 356℉)
Suitable Media: Drink, wine, milk, etc
Voltage: DC-12V, 24V; AC-24V, 110V, 220V, 380V
Connection Type: 3 Ways Tri-Clamp Ball Valve

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Benefits Of Electric Food Grade 3 Way Ball Valves:

COVNA Electric Sanitary 3-Way Ball Valves provide you with a safe and efficient fluid control solution. The three-way ball valve is mainly used for on off and changing the flow direction of the medium. At the same time, the sanitary three-way ball valve has been polished and sterilized inside and outside, and is matched with food-grade seals. So this valve can be well used in food and beverage, winemaking, syrup industry and so on.

Equipped with electric actuator which could help you control remotely and easier.

Features Of HK60-Q-WT Food Grade 3-Way Electric Actuator Ball Valve:

● 3 Way food grade ball valve with an electric actuator to make your automation easier

● Available in T port and L port with good diverter performance for your project

● Offering the food-grade solution for the applications which require sanitary

● Available in normally closed type or normally open type

● Suitable for food and beverage, packing industry, water treatment, syrup processing, canning processing, brewing industry, automatic packaging machines, filling machines, etc.

Technical Parameters Of HK60-Q-WT Food Grade 3 Way Electric Actuator Ball Valve:

Size Range	19mm to 102mm	Core Material	Stainless Steel 304/316/316L
Body Material	Stainless Steel 304/ 316L	Structure	3 Way T Port / L Port
End Connection	Tri-clamp	Medium	Milk, drink, wine, pure water, etc
Voltage Tolerance	±10%	Voltage	DC-12V, 24V; AC-24V, 110V, 220V, 380V
Temperature Of Media	-10 to 180℃ (14℉ to 356℉)	Working Pressure	10 bar

3 Way Ball Valve Flow Diagram:

Dimension Of HK60-Q-WT Food Grade 3 Way Electric Actuator Ball Valve:

Technical Parameter Of COVNA Quarter-Turn Electric Valve Actuator:

● ON/OFF type electric valve actuator: For 90 degrees fully open and close

● Regulation type electric valve actuator: For regulating the switch angle of the valve from 0 degrees to 90 degrees

● Intelligent type electric valve actuator: Same function as regulation type but with an LCD display screen to allow your to set and check the angle more easily

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistance, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field Operation	The field, remote control switch regulation and MODBUS, PROFIBUS field bus
Voltage optional	AC 110-240V 380V 50/60Hz; DC12V, DC24V, Special voltage can be customized
Protection Class	IP67

Model	5	10	16	30	60	125	250	400
Torque Output	50Nm	100Nm	160Nm	300Nm	600Nm	1250Nm	2500Nm	4000Nm
90°Cycle Time	20s/60s	15s/30s/60s			30s/60s	100s	100s	100s
Angle of Rotation	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°	0-90°
Working Current	0.25A	0.48A	0.68A	0.8A	1.2A	2A	2A	2.7A
Starting Current	0.25A	0.48A	0.72A	0.86A	1.38A	2.3A	2.3A	3A
Drive Motor	10W/F	25W/F	30W/F	40W/F	90W/F	100W/F	120W/F	140W/F
Product Weight	3kg	5kg	5.5kg	8kg	8.5kg	15kg	15.5kg	16kg
Voltage Option	AC 110V, AC 220V, AC 380V, DC 12V, DC 24V
Insulation Resistance	DC24V:100MΩ/250V; AC110/220V/380V: 100MΩ/500V
Withstand Voltage	DC24V:500V; AC110/220V:1500V; AC380V:1800V 1Minute
Protection Class	IP65
Installation Angle	Any
Electrical Connection	G1/2 Water-proof Gable Connectors, Electric Power Wire, Signal Wire
Ambient Temp.	-30℃to 60℃
Control Circuit	A: ON/OFF type with light indicator signal feedback
	B: ON/OFF type with passive contact signal feedback
	C: ON/OFF type with resistance potentiometer signal feedback
	D: ON/OFF type with resistance potentiometer and neutral position signal feedback
	E: Regulation type with a servo control module
	F: DC24V/DC12V direct ON/OFF type
	G: AC380V three-phase power supply with passive signal feedback
	H: AC380V three-phase power supply with resistance potentiometer signal feedback
Optional Function	Over Torque protectors, dehumidify heater, stainless steel coupling & yoke

Other COVNA Electric Actuator Options:

● Explosion-proof Electric Actuator: Exd II CT4 protection class to keep your project and personal safe. Torque range from 100Nm to 2,000Nm

● Auto Return Electric Actuator: In the event of a power failure, the battery drives the valve to reset. Suitable for use in the fire protection industry. Torque range from 100Nm to 6,000Nm

● Waterproof Electric Actuator: IP68 protection class and suitable use underwater. Like subsea exploration projects. Torque range from 50Nm to 2,000Nm
