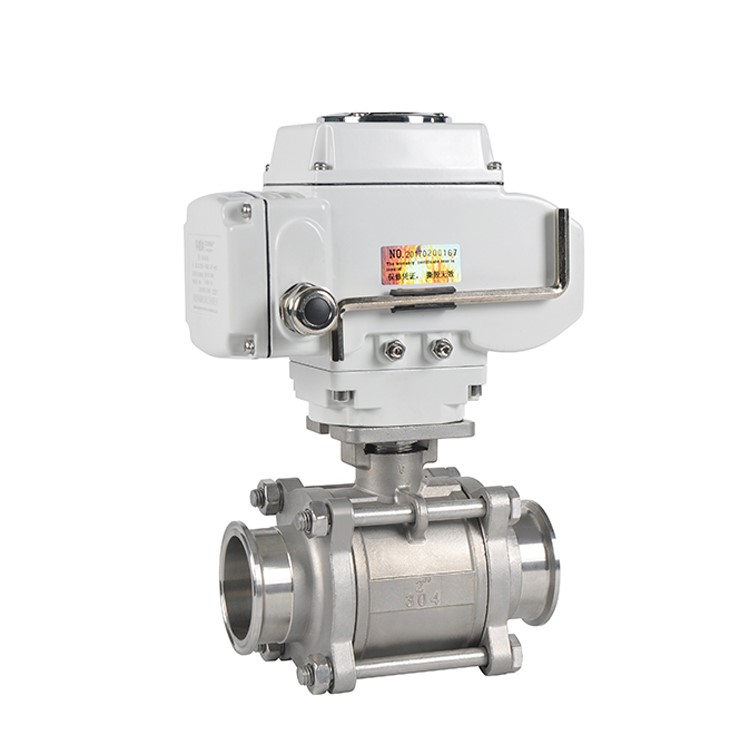

Tri Clamp 2 Way 3PCS SS314 Electric Actuated Ball Valve

Short Description:

The three-piece valve design enables the central section—comprising the ball, stem, and seats—to be removed effortlessly from the pipeline. This innovative configuration makes it much easier to clean away settled sediments, replace the seats and gland packings, and even polish minor scratches on the ball, all without having to disconnect the pipes from the valve body.

Model: HK60-Q-3PS-K
Size Range: 3/8″ to 4″
Pressure Range: 1.0 to 6.4MPa
Material: Stainless Steel

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

COVNA DN50 NPT Tri Clamp Motorized Ball Valve

This product is suitable for fluid media such as food, water, air, milk, pure water, etc., and adopts ISO5211 standard direct installation actuator. An anti-static device is installed between the core and the valve body. It is equipped with a double butterfly spring automatic compression packing design. It supports zero leakage under the pressure difference condition of the specified nominal pressure below 1.6MPa, and achieves ±2.5% hysteresis performance.

COVNA automatic valve

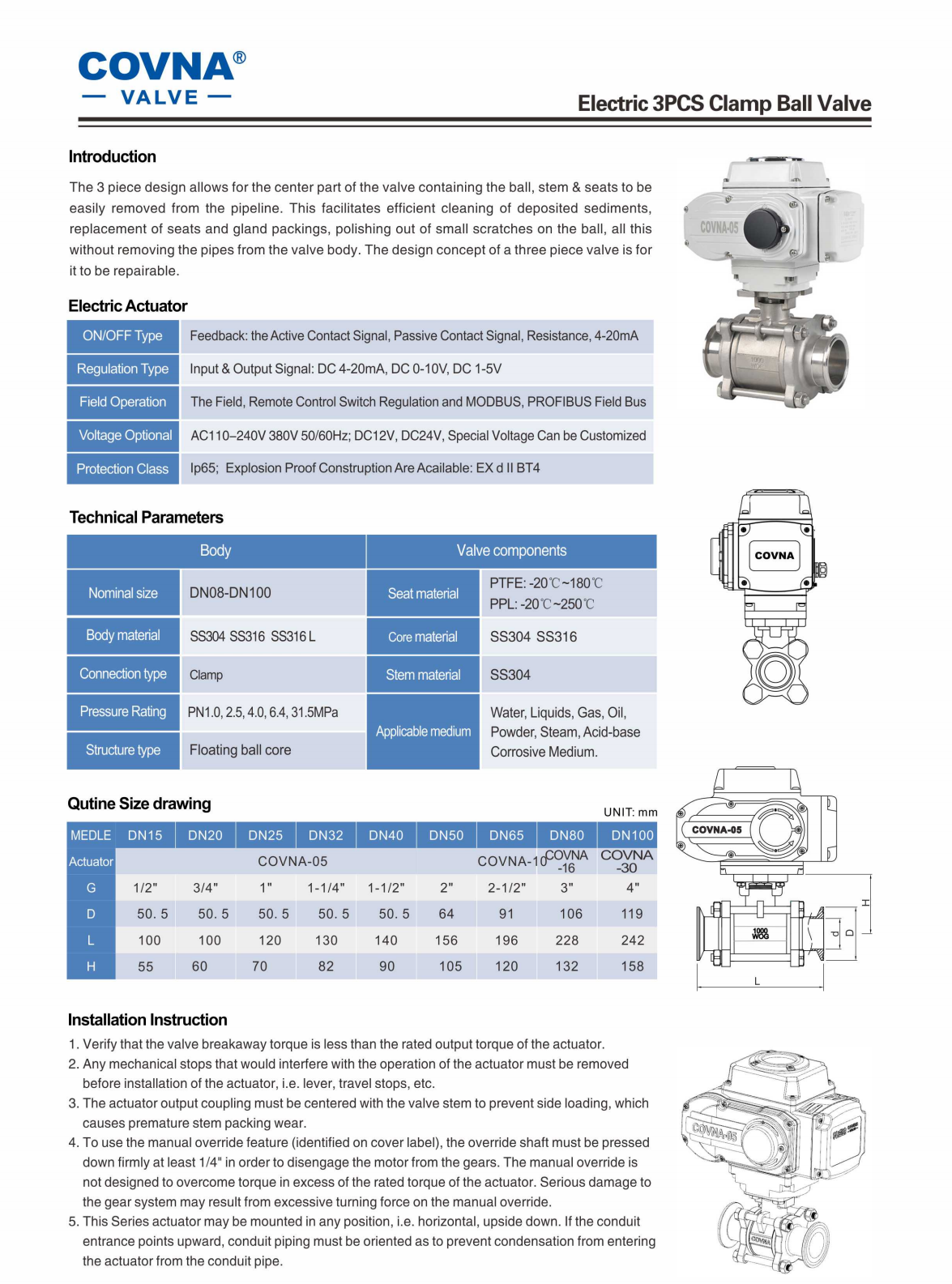

Technical Parameters of Valve Actuator

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistance, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
Voltage Optional	AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class	IP65, Explosion Proof Construction Are Available: EX ll BT4
