Thread Type 2 Way CPVC Electric Actuated Ball Valve

Short Description:

True Union provides electric ball valves made of PVC, UPVC and CPVC materials, which are widely used in water treatment, pulp processing, sewage treatment and other fields, and there is no minimum order quantity requirement. 2-way or 3-way electric ball valves can be selected according to needs. At the same time, this product supports two installation methods: quick connection and threaded connection. This product not only has the characteristics of low cost and high flow, but also has excellent corrosion resistance and food-grade safety. At the same time, three actuator options are also provided, including on/off type, regulating type and intelligent type, to meet the fine control needs of various working conditions.

Model: HK60-Q-P
Size Range: 1/2″-4″
Pressure Range: 1.0-1.6MPA
Material: Plastic,PVC

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

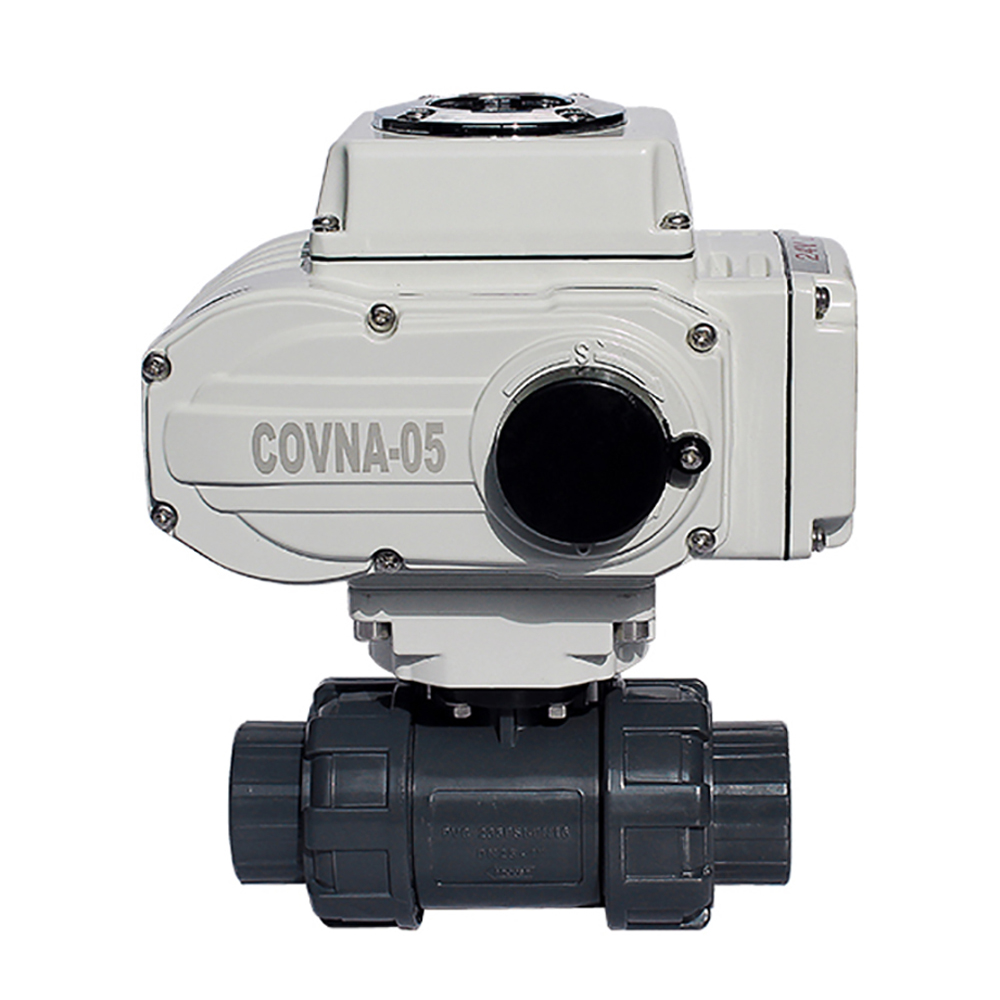

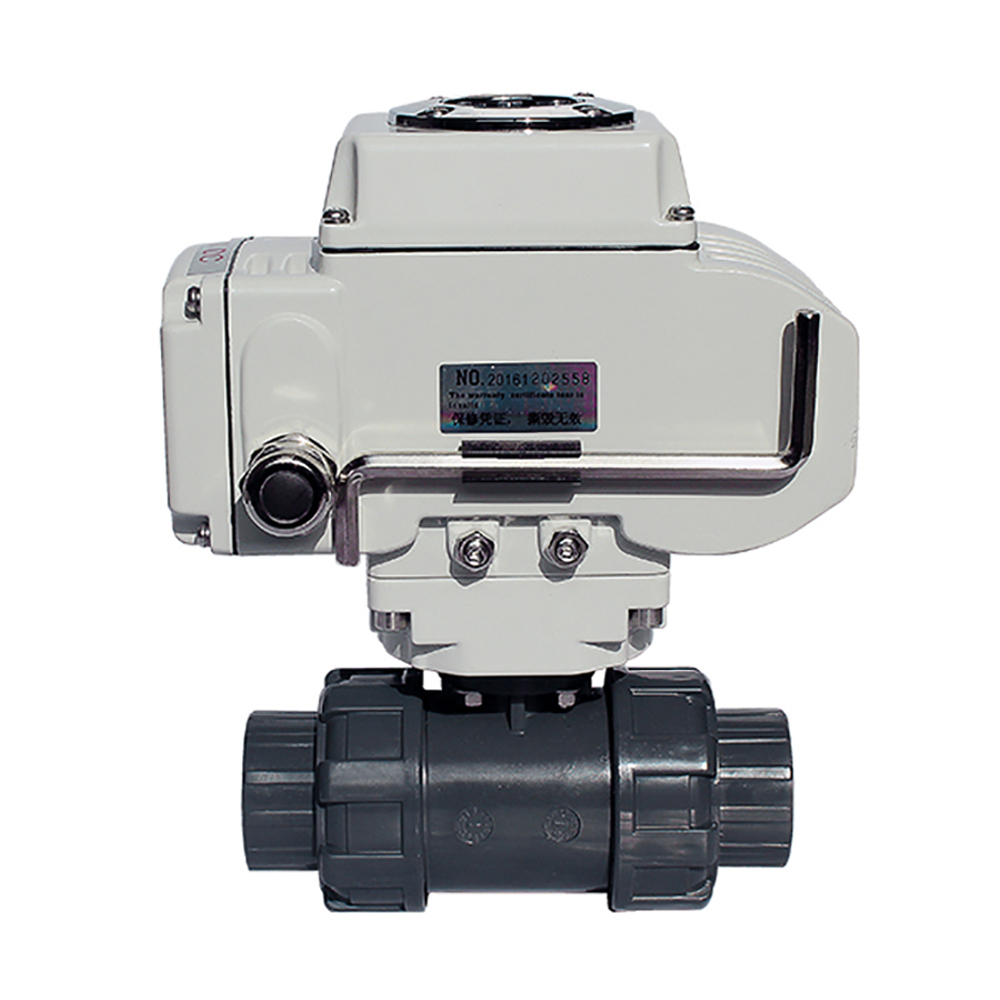

COVNA Motorized PVC 2 Way Ball Valve with Electric Actuator

This product adopts ISO5211 standard direct-mounted actuator, has a fast cycle of 90° rotation within 20 seconds, and supports computer programming control. It can achieve precise control whether it is on-site operation or remote monitoring, aiming to provide enterprises with more economical and efficient actuator valves. It operates under the condition of rated pressure difference below 1.6MPa, ensuring zero leakage and ±2.5% hysteresis performance.

Technical Parameters of Valve Actuator

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistance, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
Voltage Optional	AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class	IP65, Explosion Proof Construction Are Available: EX ll BT4

Technical Parameters of Valve Body

Model	HK60-Q-P	Voltage	24V/12V DC; 110V/220V AC
MOQ	1 Set	Actuator Type	On Off/ Modulating Control
Applicable Standard	GB, ANSI, JIS, DIN	No. of Ways	2 Way
Port Size	DN08~DN100	End Connection	True union
Operating Pressure	1000 WOG	Media	Water, Air, Gas, Acid base crossoive media
Body Material	Plastic PVC	Temp. of Media	-10°C to 180°C
Valve Ball	Stainless Steel	Certification	ISO 9001, CE, TUV, SGS
Sealing Material	EODM	Warranty	1 Year (12 Months)
