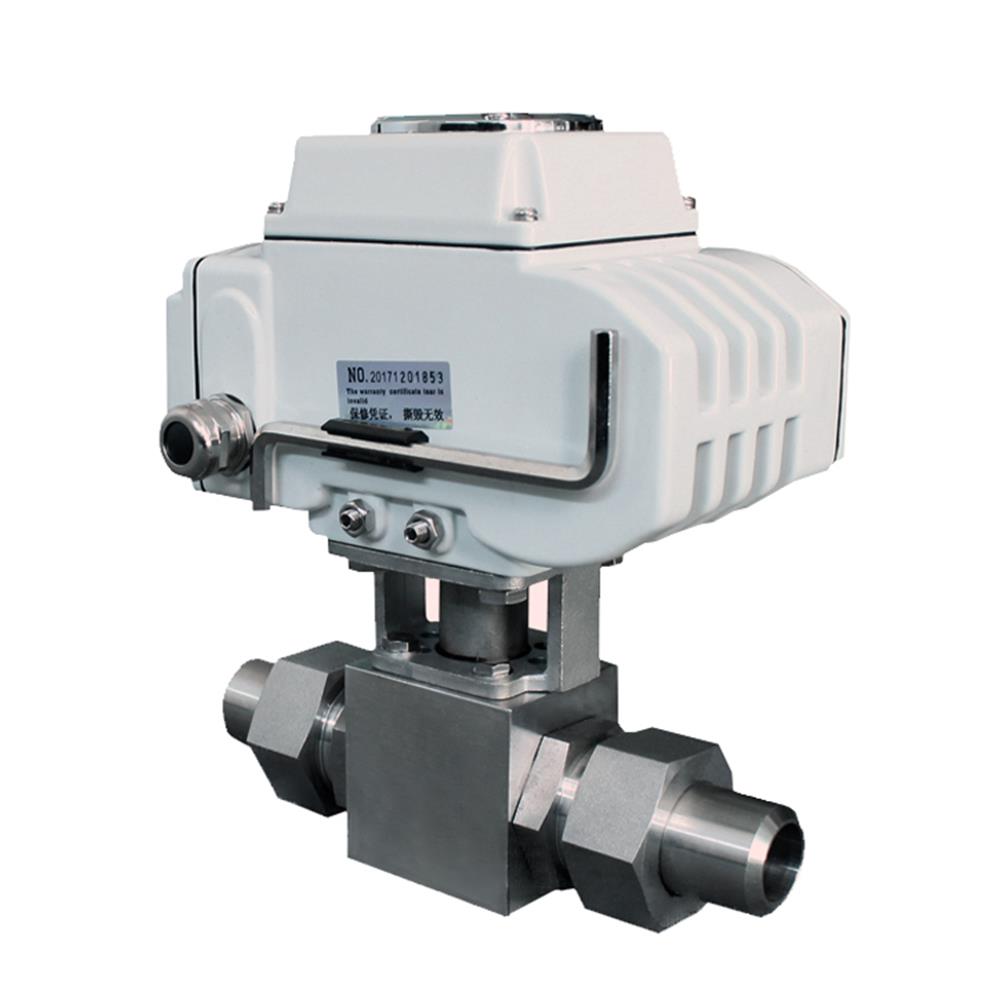

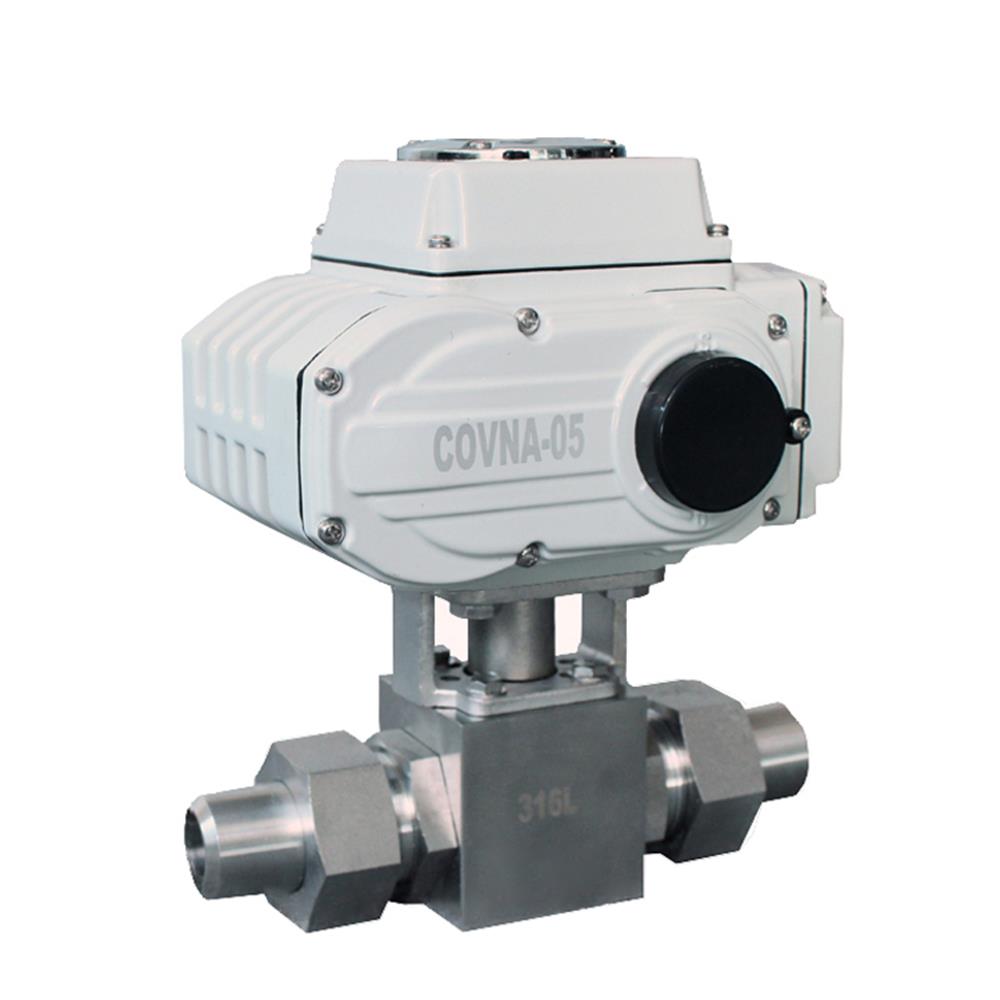

Stainless Steel 5000PSI High Pressure Electric Actuator Ball Valve

Short Description:

High-performance ball valves made from 316 stainless steel are specifically engineered for high-pressure applications. They can be equipped with either modulating or on-off electric actuators and are available with local or remote control options—complete with an LCD display—to facilitate industrial automation. The robust NEMA 4/4X weatherproof enclosure, paired with an anti-static design, ensures long-lasting operation, while the integration of 304 stainless steel adds an extra level of strength. Notably, our motorized ball valve accomplishes a full 90° rotation in just 20 seconds. As a professional manufacturer of high-pressure electric actuator ball valves, COVNA is committed to delivering first-class products and services. We welcome you to contact us!

Model: High Pressure Electric Actuator Ball Valve
Size Range: 3/8″ to 4″
Pressure Range: 16.0MPa~50.0MP
Material: Stainless Steel

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

2 Way High Pressure 5000PSI Electric Ball Valve

The product is divided into two types: switch type and regulating type. The switch type supports active contact signals, passive contact signals, resistance and 4-20mA signals, and is suitable for pressure ranges from 16MPa to 50MPa. It can realize switch control of media such as high-pressure water, pressurized natural gas, hydraulic oil, etc. The regulating type supports DC 4-20mA, DC 0-10V and DC 1-5V input and output signals. The product provides multiple control methods such as manual control, signal control and AC/DC power supply. It is small in size, light in weight, has high thrust, and has a built-in servo amplifier, which is easy to operate and highly reliable.

Product Technical Parameters

Applicable temperature	-29 ° C ~ +180 ° C
Connection method	thread, clamp, butt welding, socket welding
Body material	316L, 316, 304
Sealing material	PTFE, high pressure nylon
Control mode	switch type, intelligent adjustment type
Power supply voltage	220V AC single phase, 110V AC single phase, 380/440V AC three phase, 24V/110V/220V AC
Output torque	50N·M～2000N·M
Action time	15 seconds / 30 seconds / 60 seconds, etc
Protection device	overheat protection,overload protection
Ambient temperature	-30 ℃ ~ 60 ℃
Protection level	IP65, IP55, IP65, IP67

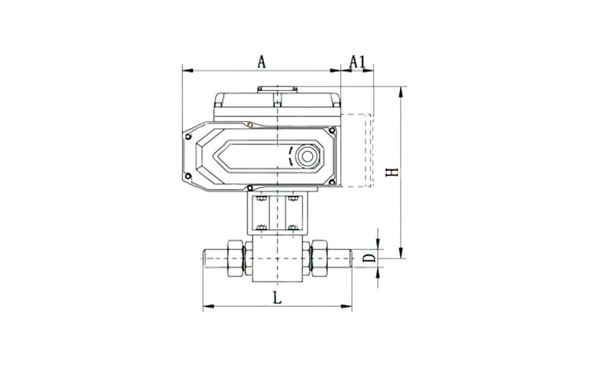

DN	6	8	10	15	20	25	32	40	50
L	133	133	154	166	174	212	230	250	294
D	10	14	18	22	28	34	42	50	64
H,A,A1	Due to the different valve seal selection and temperature selection,the electric actuator size should be based on the actual configuration.
