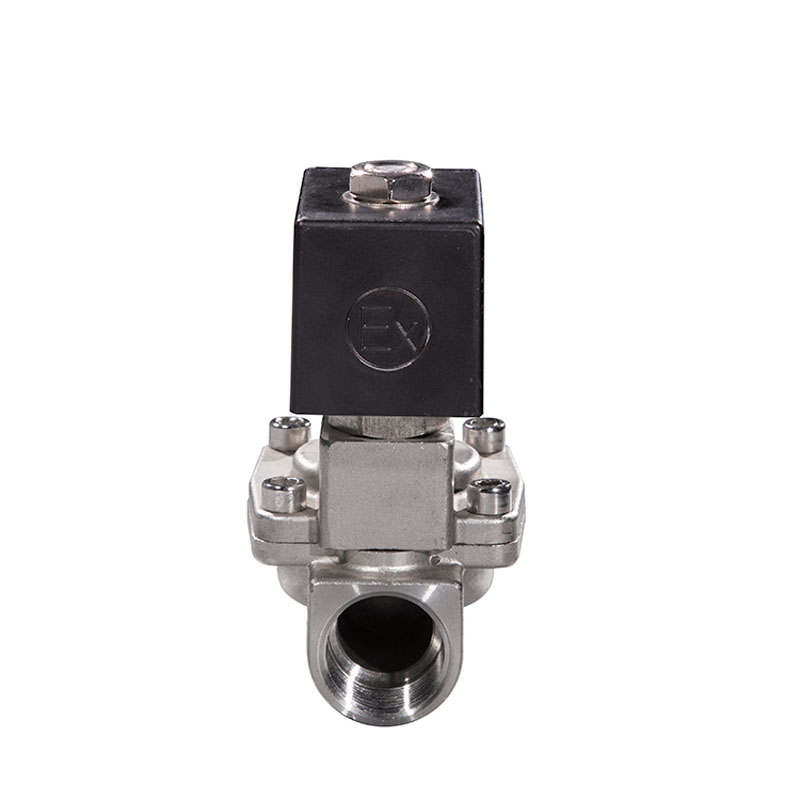

HK07-S-EX Explosion-proof Pilot Operated Solenoid Valve

Short Description:

HK07-S-EX Explosion-proof Pilot Operated Diaphragm Solenoid Valve

with a good sealing performance explosion-proof solenoid coil and stainless steel valve body. Pressure range is 0.3 to 16 bar. COVNA provides explosion-proof solenoid valves in various pressure ranges for your choice. Consult us to get the best price!

Model

Function: Normally Closed
Pressure: 0.3 to 16 bar
Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media: -10 to 120℃ (14℉ to 248℉)
Suitable Media: Air, water, oil, etc
Material: Stainless Steel

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Features Of HK07-Ex Explosion-proof Solenoid Valves:

● Pilot operated diaphragm construction with less power consumption for longtime working.

● Applied to pressure system opened from 0.3 bar.

● Lifespan can be at 1 million cycles.

Technical Parameters Of HK07-Ex Explosion-proof Solenoid Valves:

Port size	3/8", 1/2", 3/4", 1", 1.2", 1.5", 2"	Orifice(mm)	12, 15, 20, 25, 32, 40, 50
Port Thread	NPT, G	Function	Normally Closed
Pressure	0.03-1.6 MPa (0.3-16 bar)	Voltage	DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Temperature of Media	-10~120℃ (14℉-248℉)	Suitable Media	Water, Air, Oil, Gas, etc
Material	Stainless Steel	Coil	EX1620, 20VA(AC), 16W(DC),IP65,100%ED
