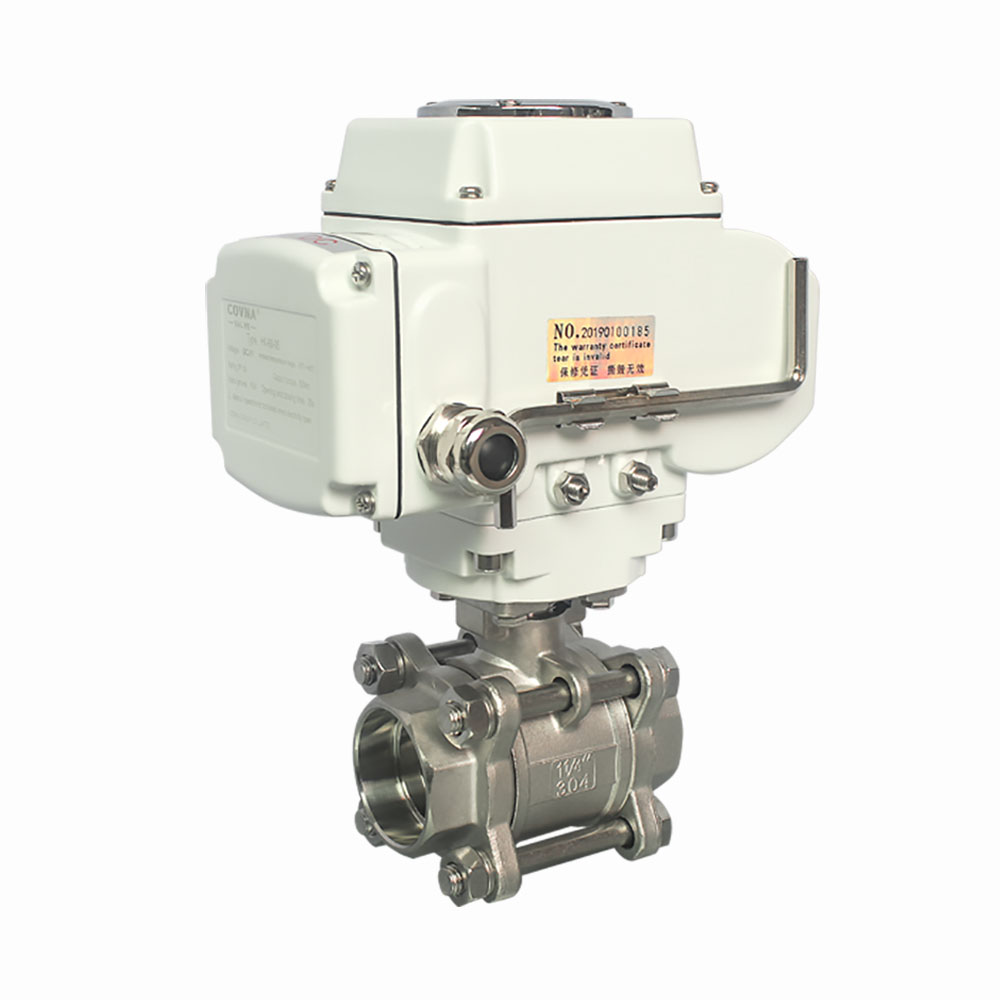

Socket Welded 3 PC Ball Valve with Electric Actuator

Short Description:

This product can be equipped with either a modulating electric actuator or a switch design. Its operation mode supports both local control and remote monitoring. It is also equipped with an LCD display to help achieve industrial automation.
It supports 4-20mA, 0-10V DC or 1-5V DC signal control, making it widely used in irrigation systems, wastewater treatment and other fields. The flange-welded electric ball valve adopts a three-stage structure and a two-way design, which can be flexibly installed in the required positions of various equipment, showing extremely high versatility.
The NEMA 4/4X-level protective housing combined with anti-static properties ensures long-term stable operation, while the use of 304 stainless steel adds an extra layer of strength to the product. Its excellent design enables the ball valve to complete a quick 90-degree rotation in 20 seconds.

• Model: Welded electric ball valve

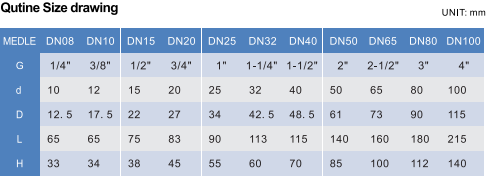

• Size Range: 1/4” to 4”
• Pressure Range: 1.0 to 31.5MPa (145 to 4568PSI)
• Material: WCB, Stainless Steel
