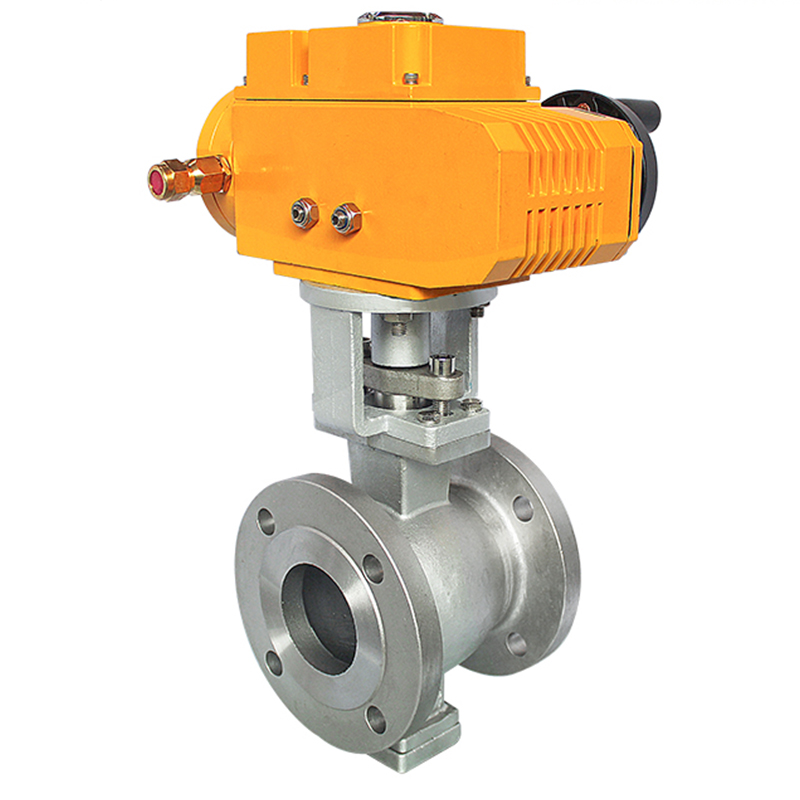

QT 2 Way Explosion Proof Electric Actuator V Type Ball Valve Flange

Short Description:

As a new type of valve product, the multifunctional V-type ball valve can achieve excellent control effects in both cut-off and regulation states. It can not only replace traditional regulating valves, but also ensure zero leakage during the cut-off process.
The core adopts a V-shaped notch structure design, which can effectively shear the medium; at the same time, the QT series electric actuator is suitable for controlling valves with rotation from 00 to 270°, and can be widely used in butterfly valves, ball valves, air throttle valves, diaphragm valves, plug valves and shut-off valves.
This system plays an important role in the process parameter control of suspended media containing fibers or tiny solid particles in industrial fields such as papermaking, chemical industry, and metallurgy.

Model: QT-Ex-actuator valve
Size Range: 1/2” to 10”
Pressure Range: ANSI 150LB
Material: WCB 304, 316

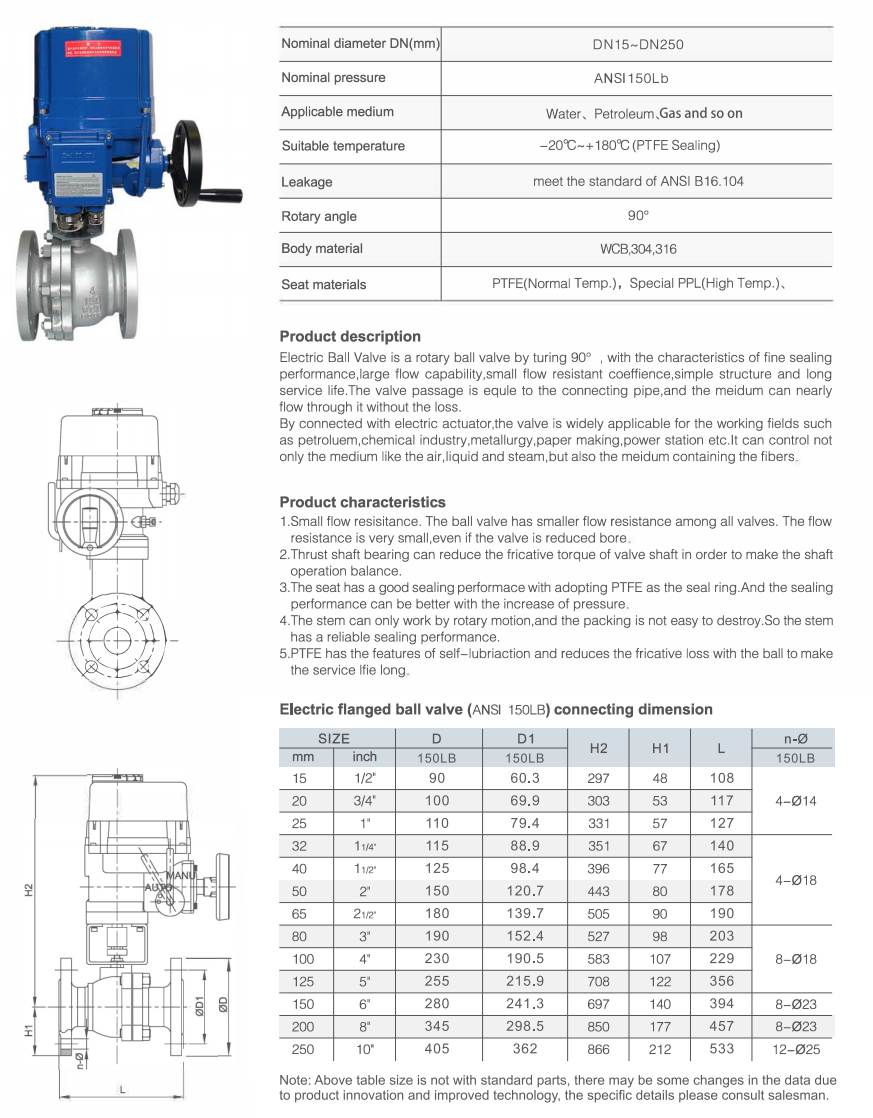

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

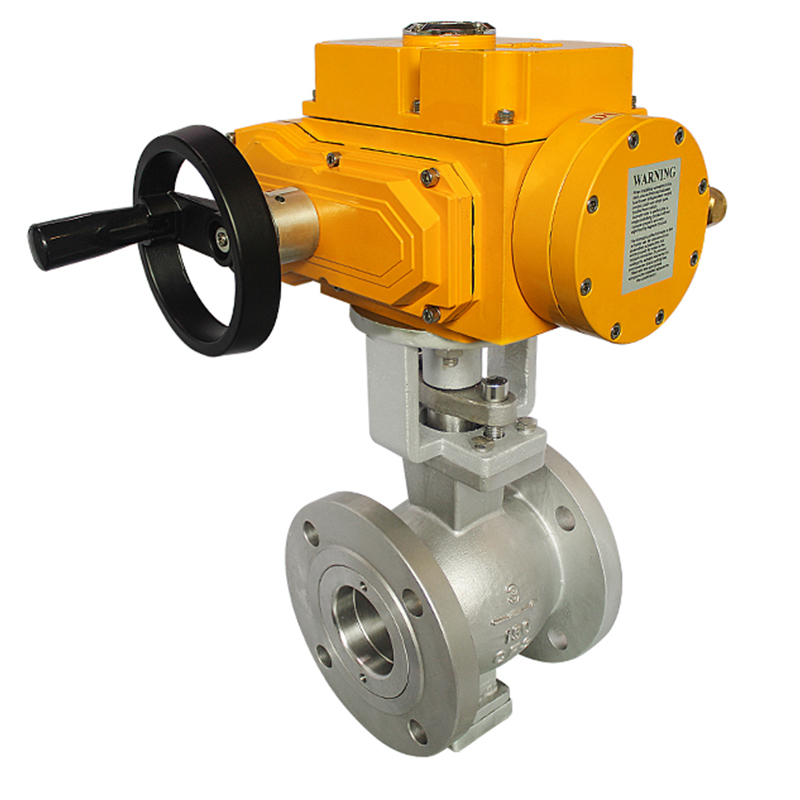

ANSI150LB Explosion proof Electric Actuator with hand wheel

This product is an electric ball valve. The motor has a built-in automatic reset thermostatic protection function to ensure the stable operation of the system. Its handwheel structure not only ensures safe and reliable operation, but also achieves the advantages of labor-saving operation and compact size. When the power is not on, manual adjustment can be performed by pulling the clutch handle; once the power is on, the clutch will automatically reset (Note: when the motor is powered off, the electric actuator always remains in manual mode).

The valve is driven by 380V/220V/110V AC and supports 4-20mA current signal or 0-10V DC voltage signal control, so that it can automatically adjust to the required position to achieve precise automatic control effect, and the maximum output torque is up to 2000NM. The product has passed the explosion-proof certification and the quality is guaranteed.

Features: Electric Motorized Ball Valve with auto-reset thermostatic protection in the motor
Manual structure: the handwheel design ensures its safety , reliability, labor saving and small size.
When it’s not energized, pull the clutch handle for manual operation. When it’senergized , the clutch will be reset automatically. ( Note : when the motor is notenergized , the electric actuator will maintain a permanent manual state)
Driven by380V / 220V / 110V AC power and controlled with 4-20MA current signals or 0-10V DC voltage signalsit can make the valve move to the required position for automatic control.
The maximum output torque is up to 2 , 000NM.
The producthas been certified by explosion-proof certification, with guaranteed quality
