HK60-Z-Z Multi-turn Motorized Slide Electric Actuated Gate Valve

Short Description:

Gate valves, whether electrically operated or electrically operated, open when the gate for fluid is raised. Gate valves occupy very little space in the pipeline and barely impede fluid flow when fully open.

Flange size: KS B2361; Pressure test: KS B2361

Model: HK60-Z-Z
Size Range: 2” to 16”
Pressure Range: ASME CL, 150, 300, 600, 900, 1500, 2500
Material: Stainless Steel

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

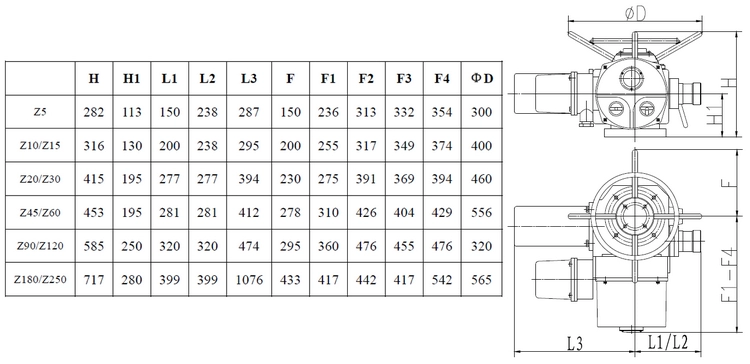

Technical Parameters of Valve Actuator

Power supply	conventional: single phase 220v, three phase 380v
Power supply	special: three phase 400v, 415v, 660v(50Hz, 60Hz)
Working environment	Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized)
Working environment	Relative humidity: 95% (at 25 ° C)
Protection level	Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Working system	short time 10 minutes (15-60 minutes for special order)

Technical Parameters of Valve Body

Valve Body		Valve components
Nominal size	DN50-DN400	Sealing material	PTFE, EPDM
Body Material	Stainless Steel	Disc Material	Stainless Steel
End Connection	Flange Ends & Butt welding Ends	Stem Material	Carbon iron
Operating Pressure	ASME CL, 150, 300, 600, 900, 1500, 2500	Applicable media	Water, Air, Gas, Petroleum, Oil, Liquid
