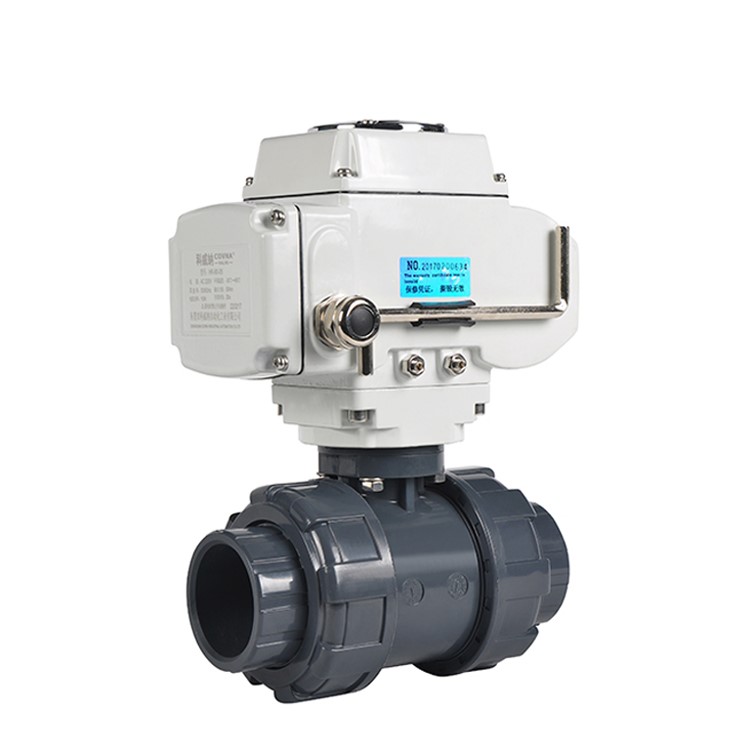

HK60-Q-P 2 Way Intelligence Type True Union PVC Electric Ball Valve

Short Description:

True Union offers electric ball valves made of PVC, UPVC and CPVC, which are widely used in water treatment, papermaking and wastewater treatment, and no minimum order quantity is required. This series of products can be installed in 2-way or 3-way, and supports quick connection and threaded interface, which is easy to install. The products not only have the advantages of low cost and high flow, but also are corrosion-resistant and meet food safety standards. Furthermore, its actuator solutions are diverse, including on-off type, regulating type and intelligent type, which fully meet various industrial automation needs.

Model: HK60-Q-P
Size Range: 1/2″-4″
Pressure Range: 1.0-1.6MPA
Material: Plastic,PVC

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

COVNA DN50 NPT Motorized Ball Valve

This product adopts the direct-mounted actuator design that complies with the ISO5211 standard, which can achieve a 90° rotation cycle within 20 seconds, ensuring that the operation is both fast and precise. It supports programmable control through a computer, which can meet the needs of on-site control or remote monitoring, thus providing enterprises with an economical and efficient automated valve solution. Under the condition of a rated pressure difference below 1.6MPa, the valve ensures zero leakage and has a precise hysteresis control of ±2.5%.

Technical Parameters of Valve Actuator

ON/OFF Type	Feedback: the active contact signal, passive contact signal, resistance, 4-20mA
Regulation Type	Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
Field operation	The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus
Voltage Optional	AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Protection Class	IP65, Explosion Proof Construction Are Available: EX ll BT4

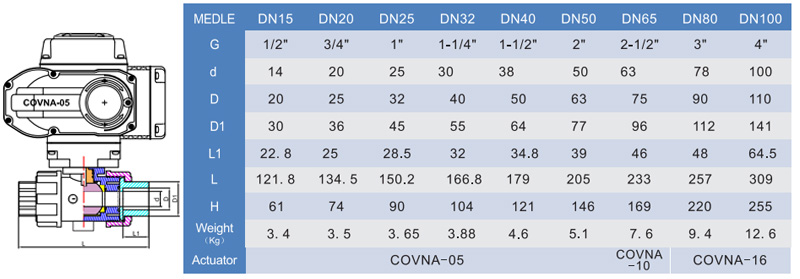

Technical Parameters of Valve Body

Model	HK60-Q-P	Voltage	24V/12V DC; 110V/220V AC
MOQ	1 Set	Actuator Type	On Off/ Modulating Control
Applicable Standard	GB, ANSI, JIS, DIN	No. of Ways	2 Way
Port Size	DN08~DN100	End Connection	True union
Operating Pressure	1000 WOG	Media	Water, Air, Gas, Acid base crossoive media
Body Material	Plastic PVC	Temp. of Media	-10°C to 180°C
Valve Ball	Stainless Steel	Certification	ISO 9001, CE, TUV, SGS
Sealing Material	EODM	Warranty	1 Year (12 Months)

本产品采用符合ISO5211标准的直装执行器设计，能够在20秒内实现90°旋转周期，确保操作既迅速又精确。它支持通过计算机进行程序化控制，可满足现场操控或远程监控的需求，从而为企业提供了一款既经济又高效的自动化阀门解决方案。在额定1.6MPa以下的压力差条件下，该阀门确保零泄漏，同时具有±2.5%的精确回差控制。
