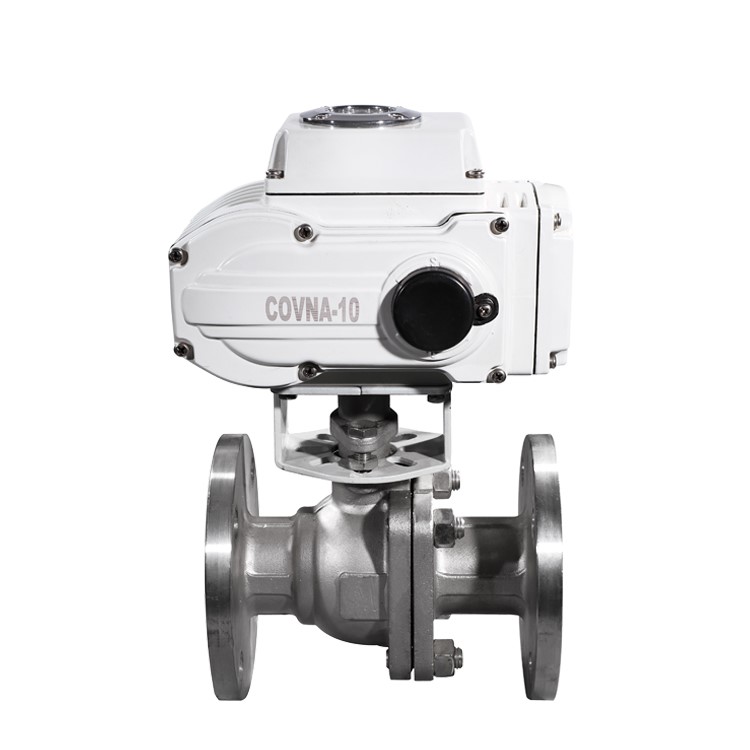

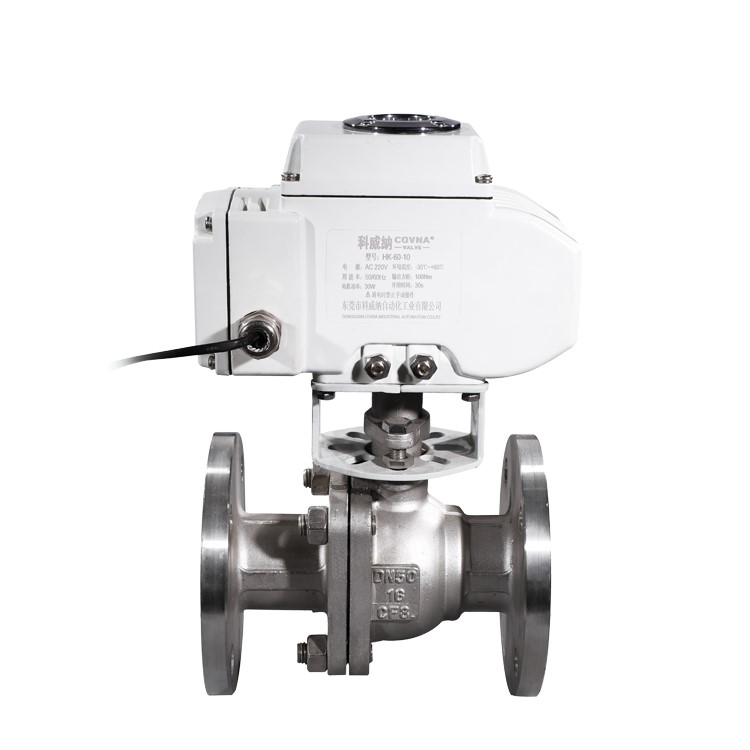

HK60-Q-F-Z Intelligent Modulating Electric Actuated Ball Valve

Short Description:

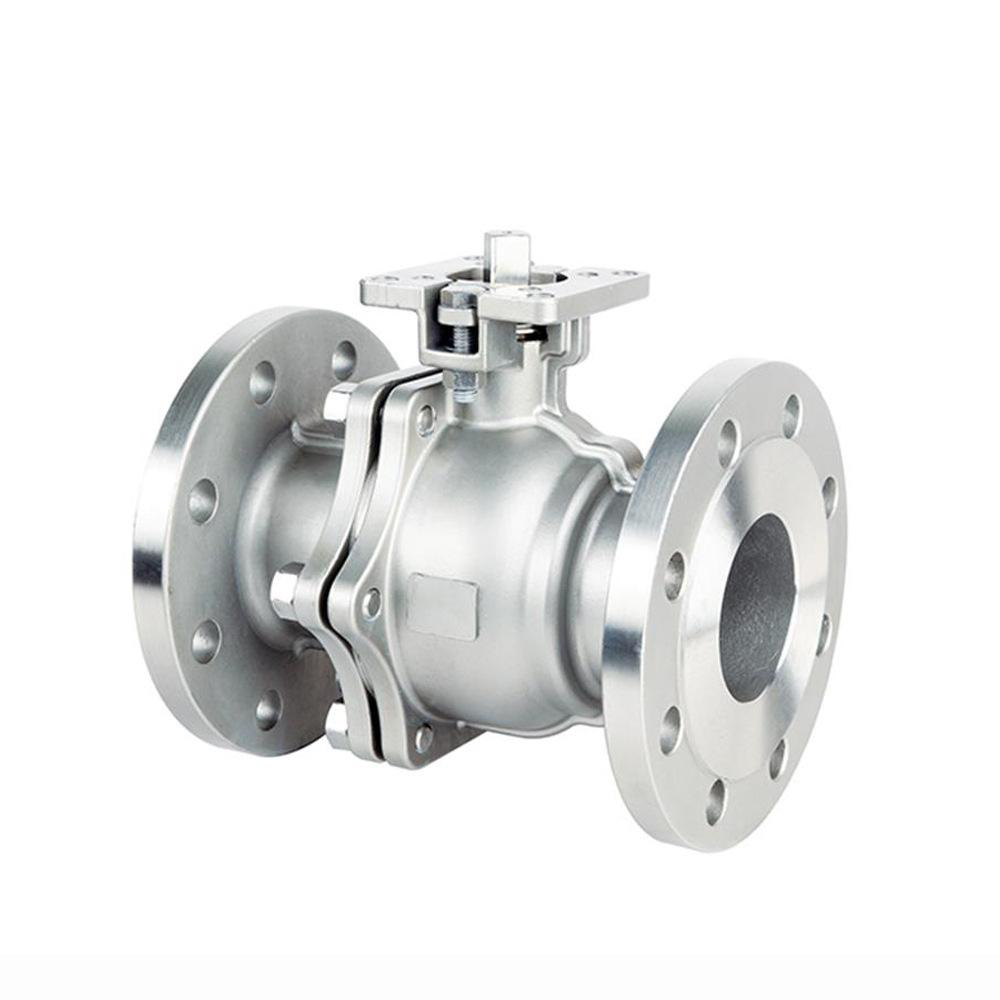

The product can be configured with adjustable or switch-type electric actuators, and supports local and remote control, equipped with an LCD display to meet industrial automation needs; at the same time, it supports 4-20mA, 0-10V DC or 1-5V DC signal control, and is widely used in irrigation systems, sewage treatment and other fields. This 300-pound flange automatic ball valve adopts a split, two-way structure design, which can be flexibly installed in any position of various equipment, showing extremely high adaptability.

The product has a NEMA 4/4X weather-resistant protective shell and anti-static properties, combined with 304 stainless steel material to ensure long-term durability and structural stability; in addition, its electric ball valve has a fast response performance of completing a 90-degree rotation within 20 seconds, thus meeting the high efficiency requirements of modern industrial applications.

Model: HK60-Q-F-Z
Size Range: 1/2” to 8”
Pressure Range: 1.6 to 6.4MPa
Material: WCB, Stainless Steel

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Product Technical Parameters

Size Range	DN15-200	Body Material	Stainless Steel
Core Materal	Stainless Steel, WCB	End Connection	Flange
Working Pressure	1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar)	Suitable Media	Water, Air, Oil, Gas, etc
Temperature Of Media	-10~180℃ (14℉~356℉)	Structure	Straight Through Flow Path
Voltage	DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz	Voltage Tolerance	±10%

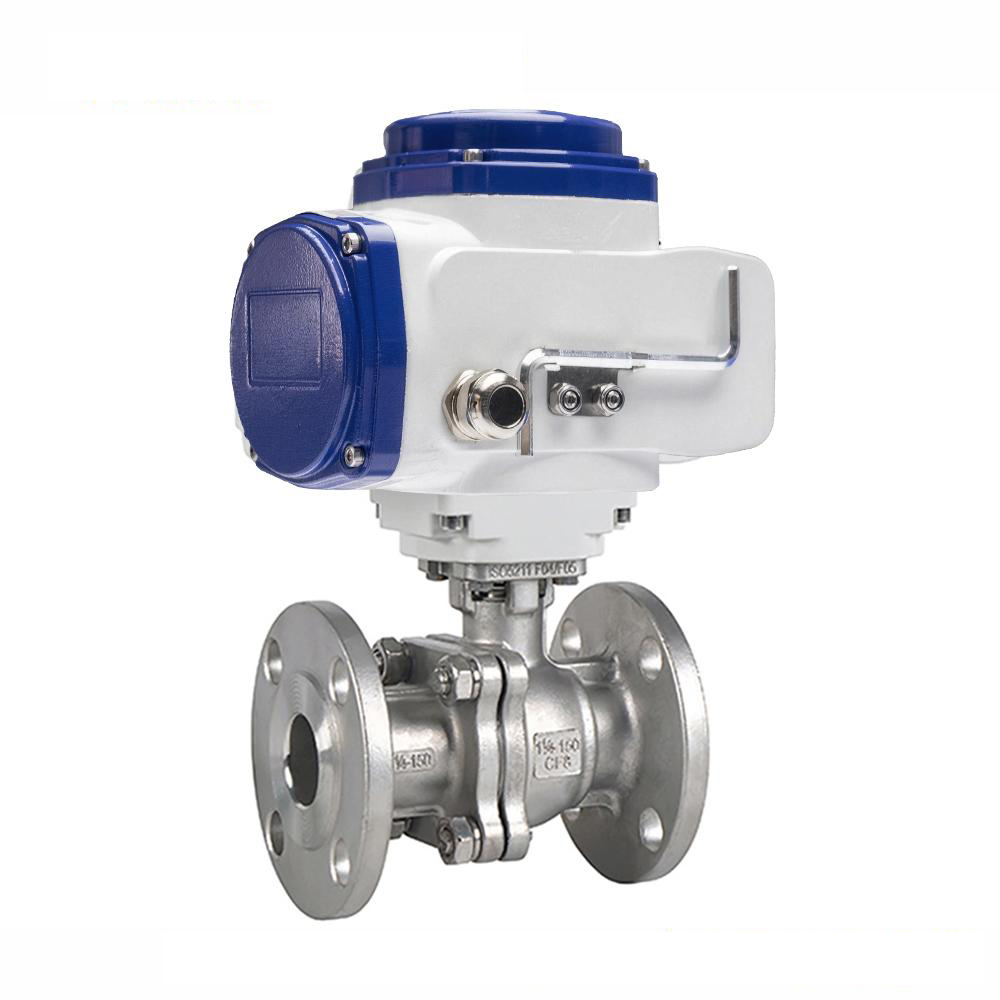

High Pressure 2 Way Flange Electric Motorized Ball Valve

This product combines two modes: ON-OFF and control.
In the ON-OFF mode, it supports active contact signal, passive contact signal, resistance and 4-20mA signal; in the control mode, it covers input and output bidirectional adjustment, providing multiple signal options such as DC 4-20mA, DC 0-10V and DC 1-5V. In addition, its design is compatible with manual control, signal control and AC/DC power supply, and can flexibly adapt to various application environments.
