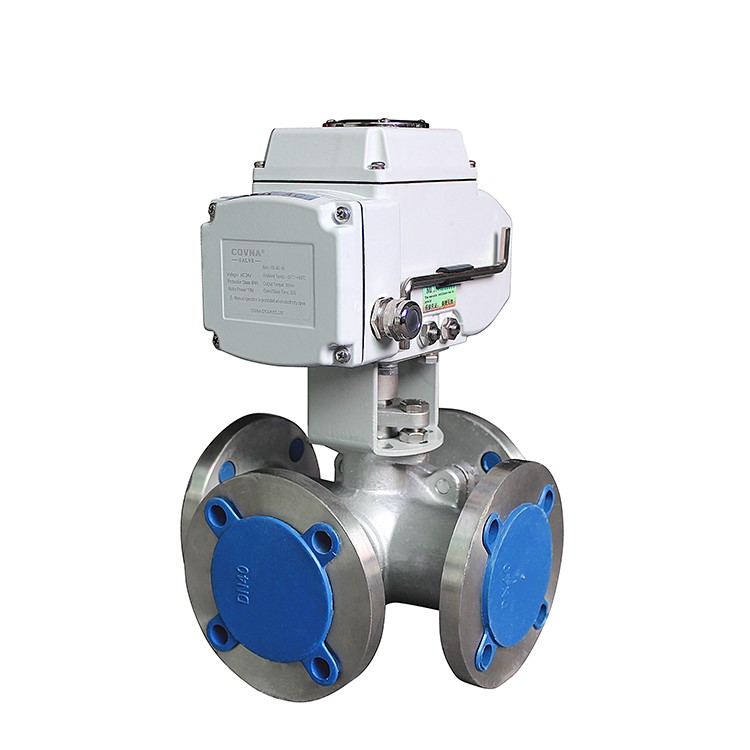

HK60-Q-4TF Multi Port Flanged End 4 Way Motorized Ball Valve
Technical Parameters of Valve Body
| Valve Body | Valve components | ||
| Size Range | DN15-DN200 | Sealing material | PTFE: -9℃~180℃
PPL: -29℃~250℃ |
| Body Material | Stainless Steel | Core Material | Stainless Steel |
| End Connection | ANSI Flange | Stem Material | Stainless Steel |
| Operating Pressure | 1.0 / 1.6 / 2.0 / 6.4 MPa (10 / 16 / 20 / 64 bar) | Applicable media | Water, Air, Gas, Oil, Liquid |
| Structure | L-port/T-port | ||
Technical Parameters of Valve Actuator
| ON/OFF Type | Feedback: the active contact signal, passive contact signal, resistance, 4-20mA |
| Regulation Type | Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V |
| Field operation | The Field, Remote Control Switch Regulation and MODBUS, PROFIBUS Field Bus |
| Voltage Optional | AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized |
| Protection Class | IP65, Explosion Proof Construction Are Available: EX ll BT4 |
Electric 4 Way Flange Ball Valve
This product is specifically engineered for long-term automation, making it an excellent choice for high-cycle OEM and end-user applications. Its design ensures broad compatibility across various industrial and OEM settings, allowing seamless integration. Additionally, reparability is a key feature, with wear components that can be swiftly and effortlessly replaced to maintain operational efficiency. Suitable for industrial emissions control, instrumentation, and both gaseous and liquid service applications, it offers premium quality at a competitive cost, proudly manufactured in China.
