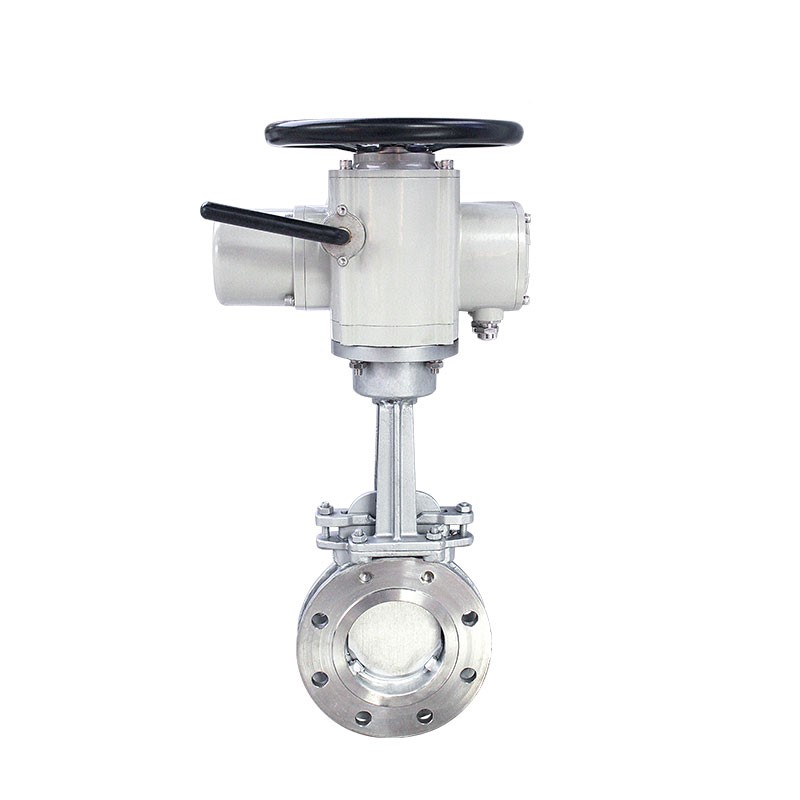

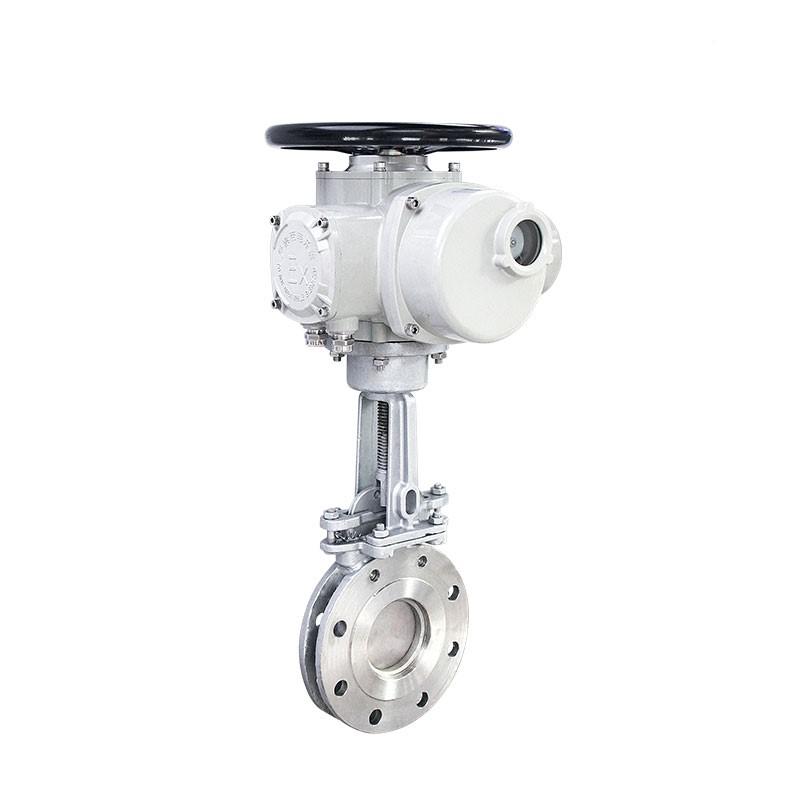

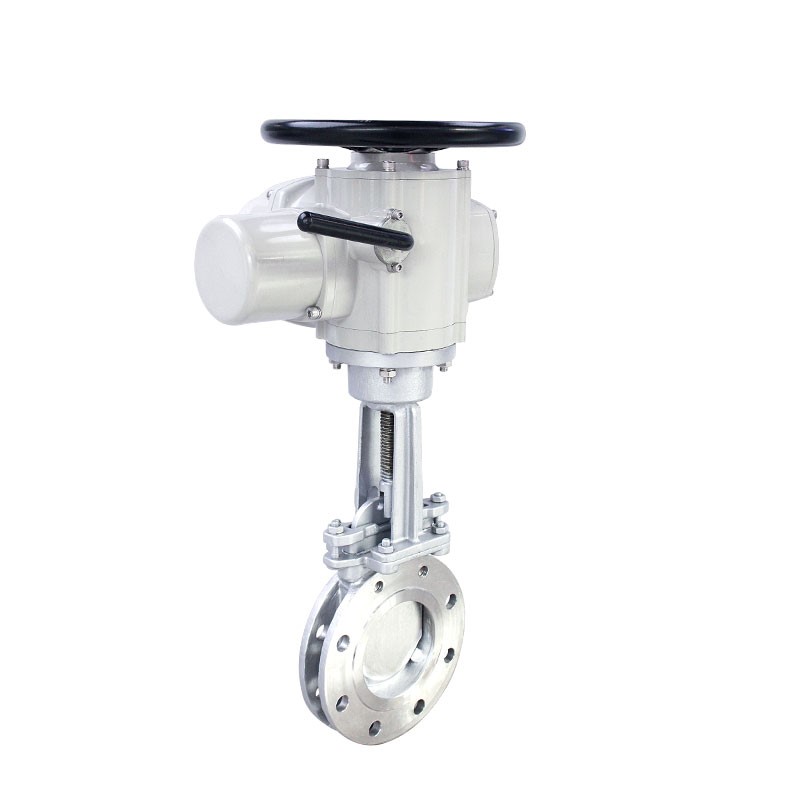

COVNA HK60-Z-S Multi-turn Electric Actuator Knife Gate Valve
Key Features
Precise Shutoff: A multi-turn electric actuator with a hard-sealed gate achieves zero-leakage shutoff, ensuring process safety.
Low Power Consumption, High Efficiency: Utilizing an advanced motor and gear drive system, operating power consumption is significantly reduced, extending maintenance intervals.
Modular Design: The valve body, motor, and control unit can be quickly disassembled and assembled, enabling rapid on-site maintenance and upgrades.
Weatherproof and Explosion-Proof: Standard IP55 outdoor dust and water resistance, with options available up to IP65, IP67, and IP68. Explosion-proof versions are also available for use in non-excavated areas of coal mines (d⁰) or explosive atmospheres in industrial plants (d¹BT4).
Various Materials Available: Body: Cast Iron, 304/316 Stainless Steel; Seals: PTFE, NBR, EPDM, VITON
Technical Parameters
| Parameter | Range |
|---|---|
| Nominal Diameter (DN) | 50 – 400 mm (2″ – 16″) |
| Nominal Pressure | 0.6 – 10 MPa (87 – 1450 PSI) |
| Power Supply | Single-phase 220 V / Three-phase 380 V; optional 400 V, 415 V, 660 V |
| Ambient Temperature | –20 °C to +60 °C (customizable) |
| Relative Humidity | ≤ 95 % at 25 °C |
| Input Signal | 4–20 mA analog; 24 V DC switch; optional Profibus-DP/Modbus |
| Output Signal | 4–20 mA DC (≤ 750 Ω); 6 passive contacts; optional Profibus-DP/Modbus |
| Protection Class | IP55 (standard); optional IP65, IP67, IP68 |
| Duty Cycle | Short-term: 10 min (optional 15–60 min) |
| Applicable Media | Water, gas, oil, slurry, sewage, powder, etc. |
Typical Applications
Municipal and industrial wastewater isolation
Pulp and paper stock handling
Chemical, petrochemical, and oil-and-gas pipelines
Power plants, steel mills, mining, and coal processing
Food processing and pharmaceutical services requiring sanitary isolation
Selection & Configuration
Verify required nominal diameter and pressure rating.
Choose valve body material (cast iron or stainless steel) and seal type (PTFE, NBR, EPDM, VITON).
Specify environmental protection and explosion-proof level (IP55–IP68, d⁰, d¹BT4).
Select actuator power supply and control interface (220 V, 380 V, 4–20 mA, Profibus-DP, Modbus).
Customize duty cycle and operating temperature range as needed.
