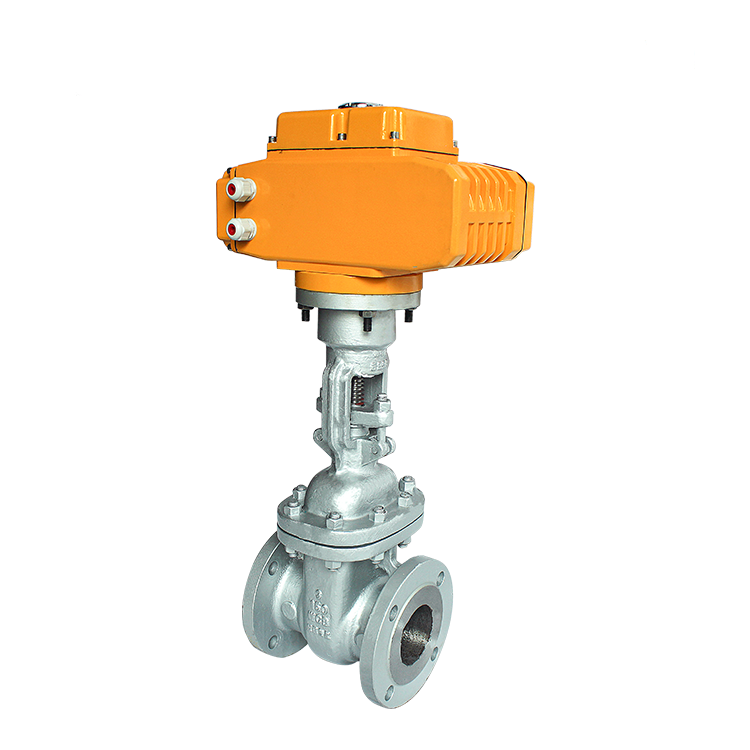

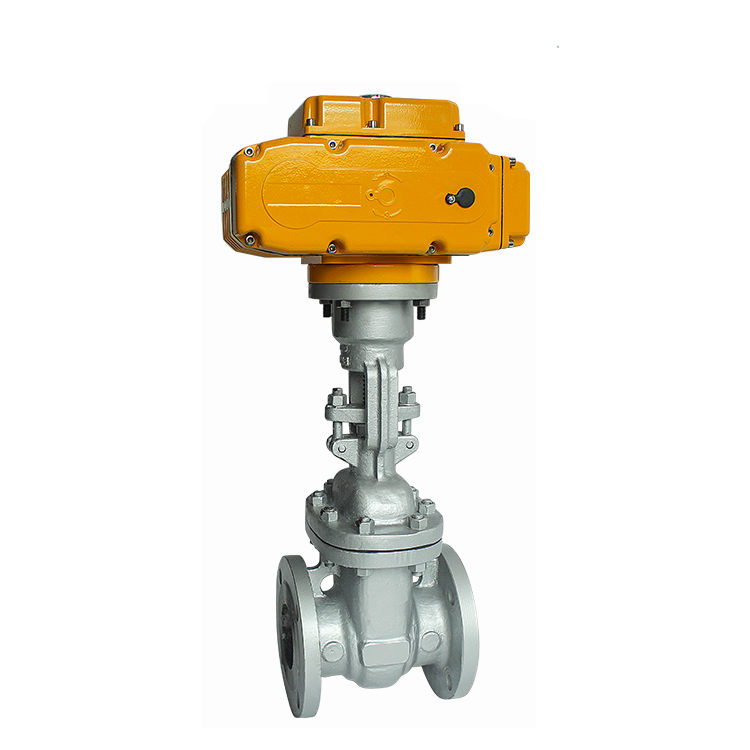

COVNA Cast Steel WCB Motorized Flange Gate Valve

Short Description:

An electric gate valve, also known as a gate valve, is a type of valve that opens by lifting an obstruction (gate) in the flow path of a liquid. When fully open, the gate valve barely restricts the flow of liquid, thus facilitating access to the valve. Gate valves occupy very little space on the pipe axis.

Model: HK60-Z-Z
Size Range: 2” to 16”
Pressure Range: ASME CL, 150, 300, 600, 900, 1500, 2500
Material: Stainless Steel, WCB

Get A Quick Quote Download Datasheet

Product Detail

Product Tags

Technical Parameters of Valve Actuator

Power supply	conventional: single phase 220v, three phase 380v
Power supply	special: three phase 400v, 415v, 660v(50Hz, 60Hz)
Working environment	Ambient temperature: -20 ~ + 60 ℃ (special temperature environment can be customized)
Working environment	Relative humidity: 95% (at 25 ° C)
Protection level	Outdoor type and explosion-proof type are IP55 (IP65, IP67, IP68 can be provided for special order)
Working system	short time 10 minutes (15-60 minutes for special order)

Technical Parameters of Valve Body

Valve Body		Valve components
Nominal size	DN50-DN400	Sealing material	PTFE, EPDM
Body Material	Stainless Steel	Disc Material	Stainless Steel
End Connection	Flange Ends & Butt welding Ends	Stem Material	Carbon iron
Operating Pressure	ASME CL, 150, 300, 600, 900, 1500, 2500	Applicable media	Water, Air, Gas, Petroleum, Oil, Liquid
